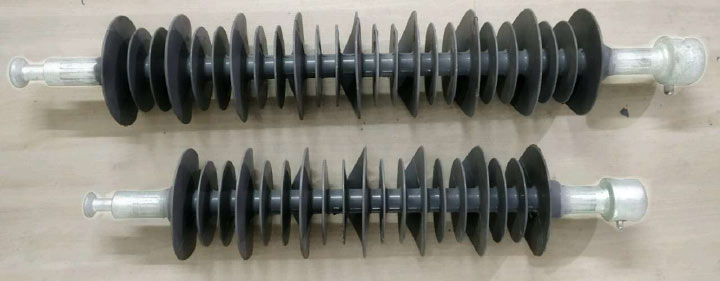

66 KV COMPOSITE INSULATORS

System Voltage (KV)	Specified Mechanical Load (KN)	Minimum Creepage Distance (MM)	Sectionl Length (mm)	Lighting Impulse with stand (kvp)	1 Mint. Wet Power Frequency with stand (kv)	Type of end Fitting
66	70	2245	725	350	140	B & S 16mm
66	70	2400	870	350	140	B & S 16mm
66	120	2400	870	350	140	B & S 20mm

* The Metal end Fitting can be supplied as per the Customer Requirement and specification
