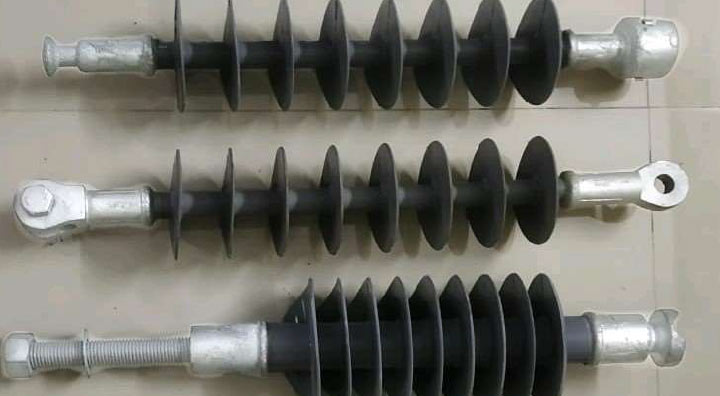

33-36 KV COMPOSITE INSULATORS

System Voltage (KV)	Specified Mechanical Load (KN)	Minimum Creepage Distance (MM)	Sectionl Length (mm)	Lighting Impulse with stand (kvp)	1 Mint. Wet Power Frequency with stand (kv)	Type of end Fitting
33	70/90	900	530	220	90	T & C (or) B & S
33	45	900	505	220	90	T & C (or) B & S
33	10	900	380	200	90	Pin

* The Metal end Fitting can be supplied as per the Customer Requirement and specification
