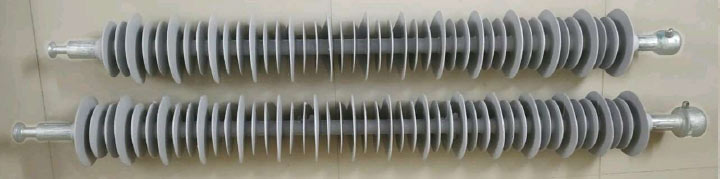

132 KV COMPOSITE LONG ROD INSULATORS

System Voltage (KV)	Specified Mechanical Load (KN)	Minimum Creepage Distance (MM)	Sectionl Length (mm)	Lighting Impulse with stand (kvp)	1 Mint. Wet Power Frequency with stand (kv)	Type of end Fitting
132	70	4495	1305	650	275	B & S - 16mm
132	90	4835	1450	650	275	B & S - 16mm
132	120	4835	1450	650	275	B & S - 20mm

* The Metal end Fitting can be supplied as per the Customer Requirement and specification
