11~15 kV COMPOSITE INSULATORS

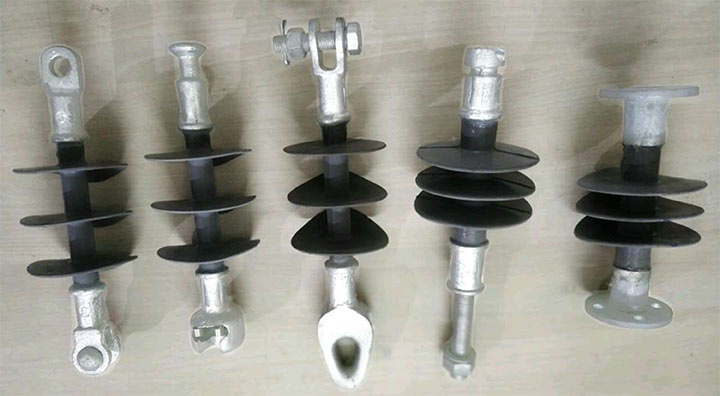

11-15-kV-Polymer
11~15 kV COMPOSITE INSULATORS

System Voltage (KV) Specified Mechanical Load (KN) Minimum Creepage Distance (MM) Sectionl Length (mm) Lighting Impulse with stand (kvp) 1 Mint. Wet Power Frequency with stand (kv) Type of end Fitting
11 45 320 270 70 40 T & C (or) B & S
11 70 320 340 70 40 T & C (or) B & S
11 5 320 240 70 40 Pin

* The Metal end Fitting can be supplied as per the Customer Requirement and specification
